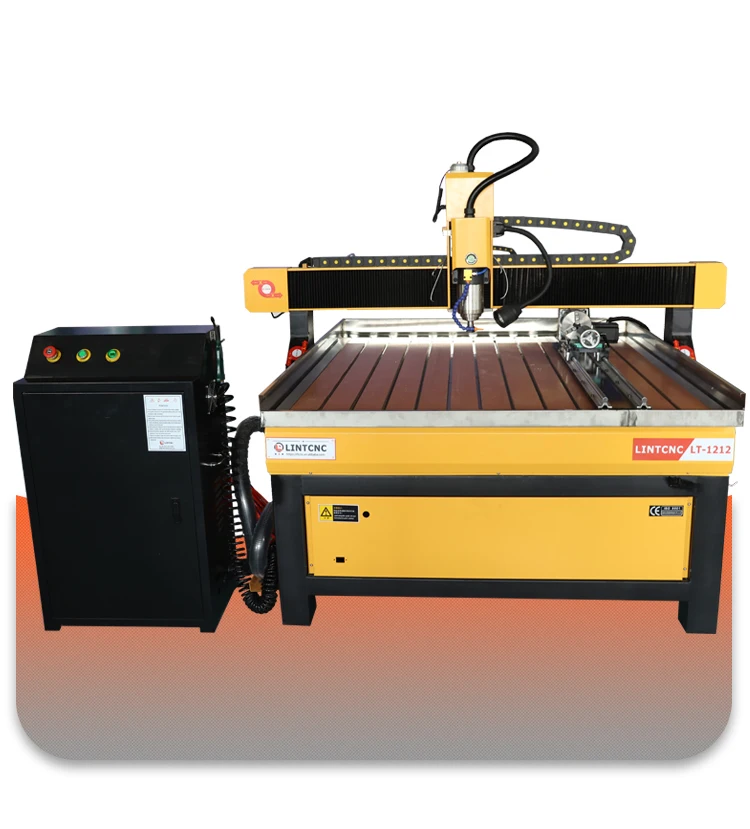

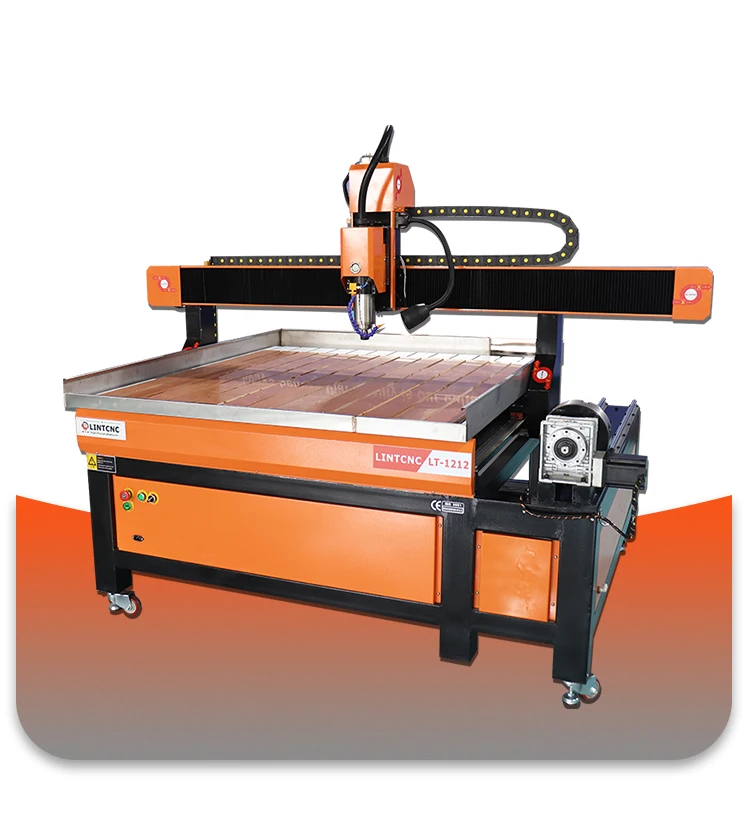

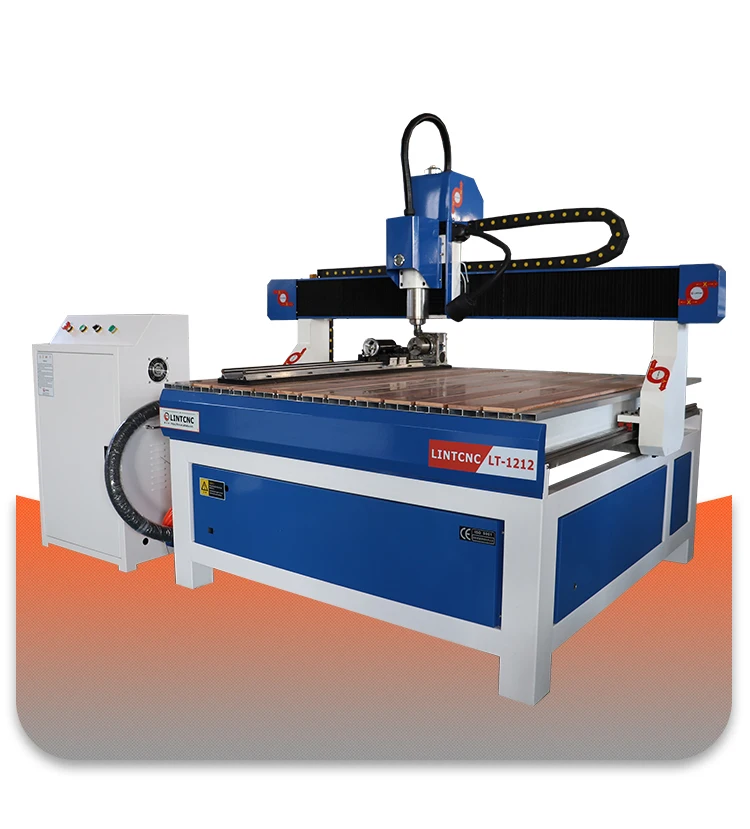

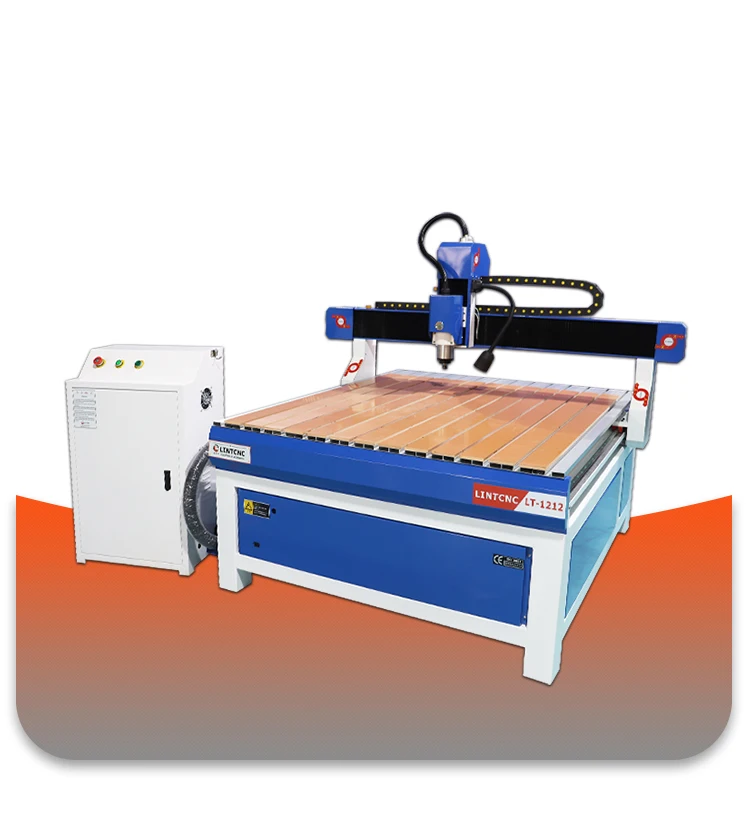

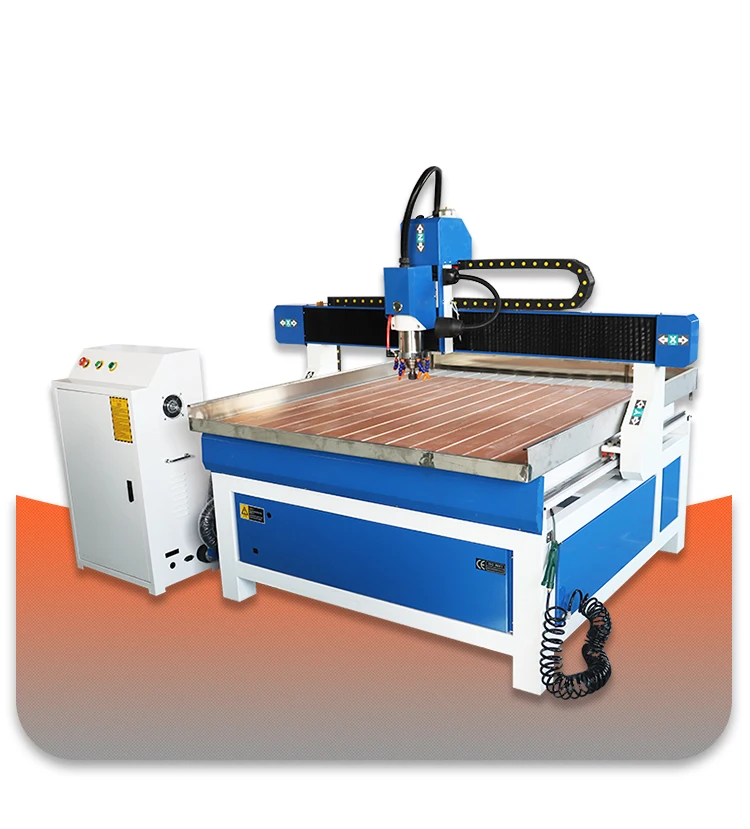

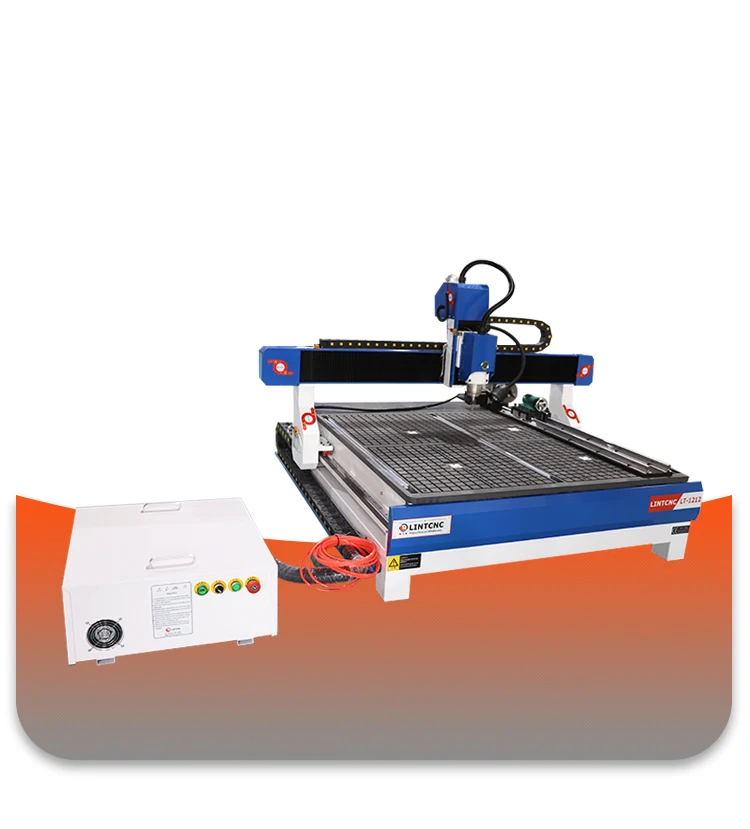

4 Axis HQD 3.5kw Water Cooling Wood Cutting Machine Cnc Router 1212 1218 1325 1530 with Rotary for Wood Mdf ACP


SKU: 1005005791900785
  • Controller: MACH3
  • Is Smart Device: YES
  • Model Number: LT-1212
  • Condition: New
  • CNC or Not: CNC
  • Origin: Mainland China
  • Certification: CE
  • Working area: 1200*1200*200mm
  • Machine structure: Welded steel tube
  • Table: Aluminum T-slot table with PVC
  • Guide rail: Taiwan Hiwin linear square guide rail
  • Driving method: Taiwan Original TBI Ball screw
  • Spindle power: 1.5KW-3.0KW
  • Inverter: Fuling invert
  • Collet: ER16
  • Spindle speed: 0-24000rpm,0-24000rpm
  • Motors and drivers: Leadshine 86BYG-450B stepper motors and MA860H drivers
  • Controller: Ncstudio/MACH3/DSP control system
  • Precision: <0.03/300mm
  • Working speed: <7000mm/min
  • Traveling speed: 0-7000mm/min
  • Instruction format: G code *.u00 *.mmg *.plt
  • Working Voltage: AC 220V, Single Phase, 50-60Hz
  • Standard Software: ARTCAM
  • Compatible software: Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software
  • Environment temperature: 0-45℃
  • Tool sensor: Yes
  • Tool box: Yes
  • Color: Customizable

1212 1218 1224 1325 Wood CNC Router Machine CNC With Water Tank For Engraving Wood Stone Metal Wood Router CNC Milling Machine

Email: [email protected]

TEL: +86 13205409125

Alisa Sun

Product Application

1.Advertisement: engraving and cutting various labels and number plate.
2.Art crafts: engraving characters of any languages and graphics on gifts and souvenirs

Woking area


Table style

Aluminum T-slot table with PVC

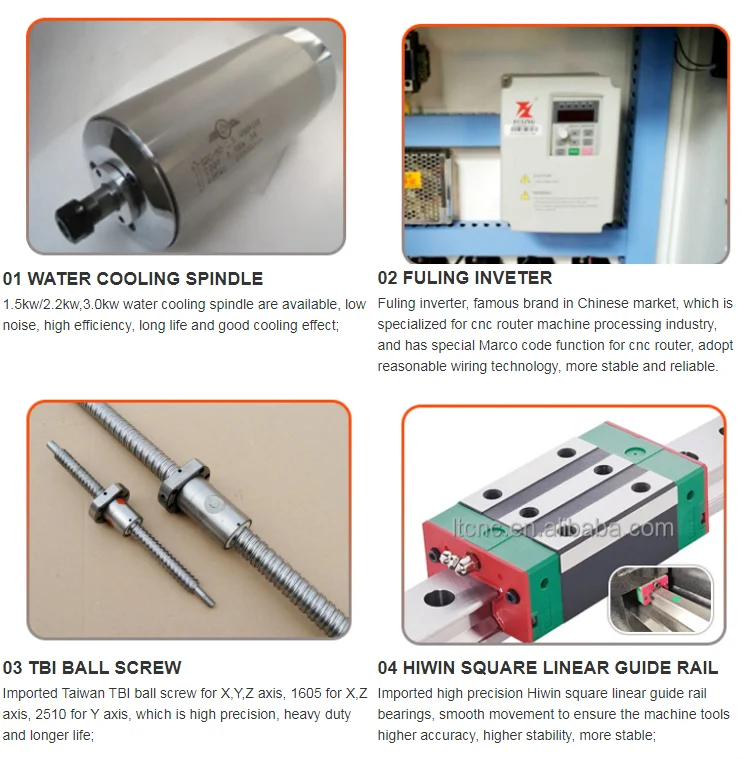

1.5KW water cooling spindle

Machine body structure

Steel tube welding structure

Spindle rotating speed


Collect size


Guide rail

Hiwin linear guide rail

Driving method

Taiwan original TBI ball screw

Motors and drivers

86BYG-450 stepper motor and Leadshine drivers MA860

Control system

NCstudio control system


Fuling invert

Max.working speed


Instruction formate

G code*.u00*.mmg*.plt

Woking voltage

AC220V,single phase,50-60Hz

Standard software


Compatible software


Control Cabinet



Tool sensor;Tool Box,English manuals etc.

Optional parts

1)2.2kw water cooling spindle;

2)Rotary axis(80mm//100mm/150mm) diameter

3)Mach3/DSP control system;

4)Stainless water tank.etc


Advertisement: engraving and cutting various labels and number plate.

Art crafts: engraving characters of any languages and graphics on gifts and souvenirs

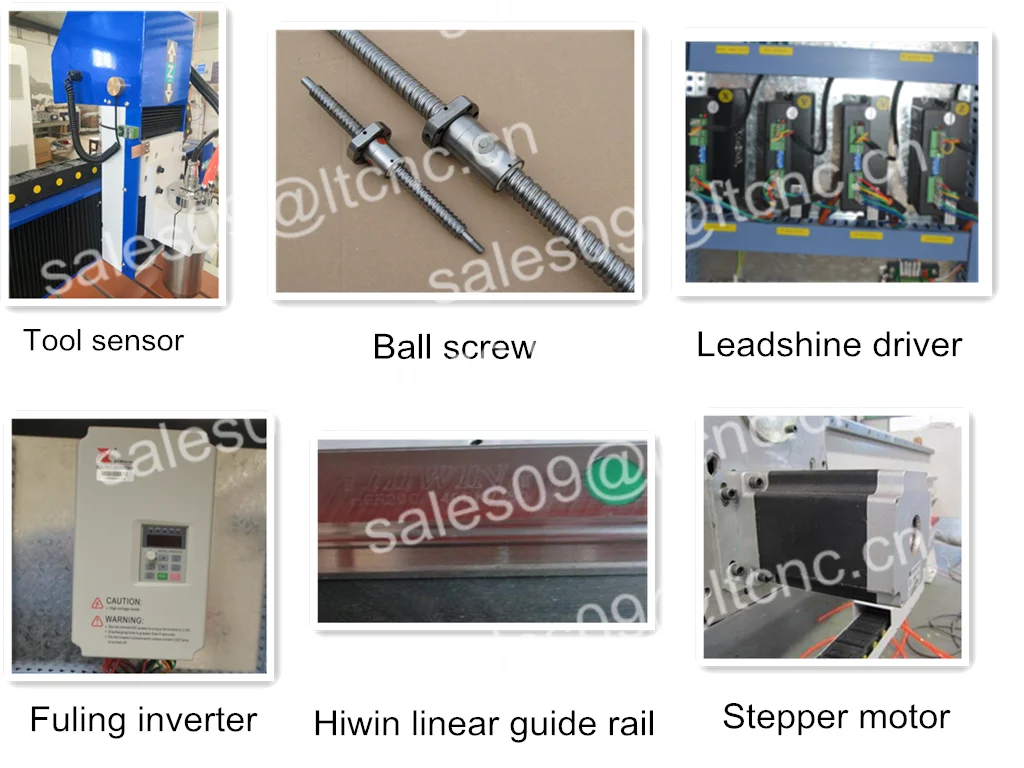

Main configuration:

1. CE ISO standard, 600*900*200mm effective working area;

2. Welded steel tube machine structure

3. XY,Z Ball screw transmission;

4. Ncstudio/MACH3/DSP control system;

5.1.5KW water cooled spindle,

6. Fuling inverter;

7. Leadshine driver MA860C and stepper motor 86BYG-450B;

8. Hiwin linear square guide rail;

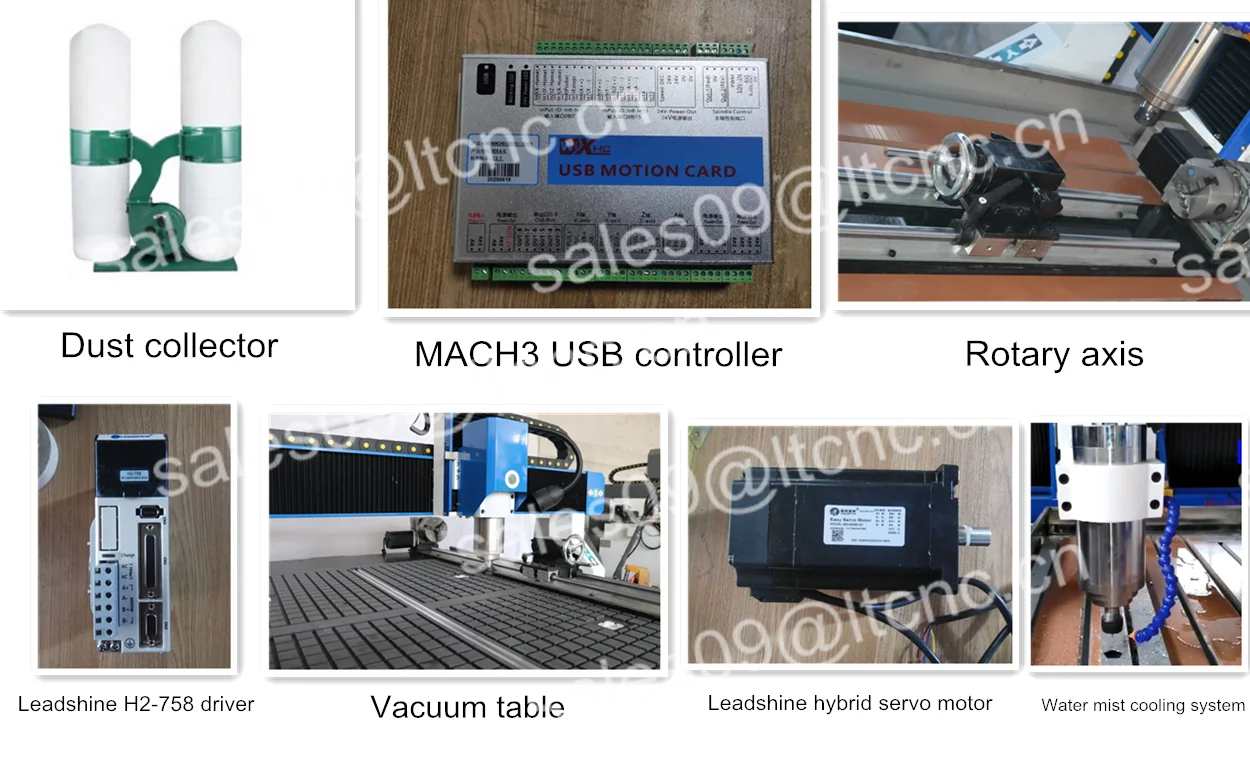

Optional part

· 2.2kw/3.0kw water cooling system

· Mach3 USB control system/DSP control system

· Water cooling system with water tank

· Dust collector

· Vacuum table with vacuum pump

· Rotary axis diameter 80mm/100mm/150mm.


1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows,

desks and chairs.

2. Decoration industries: screens, wave boards, large size wall hangings, advertising boards and sign making.

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.

4. Decoration industries: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial

stones, organic glass, plastics and soft metal sheets such as copper and aluminum.

. Advertising industries: engraving, milling and cutting processing for acrylic, PVC, density board, artificial stone, organic glass, plastic and soft metal sheet such as copper and aluminum
2.Arts and crafts industries: engrave on artificial stone, wood, bamboo, marble, organic board, double color board and so on for achieving effects of exquisite patterns and characters
3.Furniture industries:cabinet door, wooden door, solid wood, plate, antique furniture, door, window, desk and chair.


Company Information

Feedbacks from our clients

Package show

Our service

1. Guarantee: 3 years guarantee of the whole machine+1.5 years warranty for motor and spindle.
2. Software issue: Supply technical support for machine lifetime free.
3. Hardware issue: Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4. Support online: our engineer give 1 hours to solve question online.
5. Training in LINTCNC factory: We are able to train your staff after placed order in our factory for free.
6. Oversea service: We are able to send technician to your workshop to do the installation and training. You will need bear the related costs. (flight,visa,hotel,training costs, etc.)


1. I never use this kind of machine before, is it easy to learn?

User-friendly English manual and operation video will be sent together with the machine,if there is still any question,we can talk through phone or Skype. Morever, you could come to our factory to learn how to use it before shipment. Our technicant will give you professional guidance.

2. If the machine has problem, what can you do to help?

Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. our after-sales staff can come to your workshop if the problem still cannot be fixed.

3. How could I know if this machine is suitable for me?

Before ording,we will provided every details of the machine for your reference,or you could tell us your work piece,our technicient will recommend the most suitable machine for you.Furthermore,we can make a sample in advance for you to check if your drawing is provided we will give you 24 hours service from phone and Skype.

4. MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name.There will be best shipping fright and machine price send to you.

5.Payment terms

A.50% by T/T in advance,50% byT/T before shipping;

B. Alibaba online order;

6. Delivery terms

Within 15 working days after receiving the deposit, expedited production can be arranged.

Transport terms

Package: International Standard Exporting Plywood case

We can send machine to your port or door address by sea or airplane.

Pls kindly tell us your near port or address with postcode.

Contact details

Very sincerely look forward to your inquiry!

Any questions about our machines,welcome to contact me!

Contact with me pls.
